4. Use nullfs mounts

title: "Using nullfs mounts" get started, setup description: Using nullfs mounts in our application

In the previous chapter, we talked about and used a volume mount to persist the data in our database. A volume mount is a great choice when you need somewhere persistent to store your application data within Kleene.

A nullfs mount is another type of mount, which lets you share a directory from the host's filesystem into the container. When working on an application, you can use a nullfs mount to mount source code into the container. Another usecase can be the need to make contents available from external storage such as nfs.

In this chapter, we'll see how we can use nullfs mounts and a tool called nodemon to watch for file changes, and then restart the application automatically. There are equivalent tools in most other languages and frameworks.

Quick volume type comparisons¶

The following table outlines the main differences between volume mounts and nullfs mounts.

	Volumes	Nullfs mounts
Host location	Kleened stores it under the `<kleene-root>/volumes` dataset	You decide
Example	`--mount my-volume:/usr/local/data`	`--mount /path/to/data:/usr/local/data`

Under the hood, volume mounts are nullfs mounts where Kleene manages the underlying ZFS filesystem.

Nullfs mounts are, as the name suggests, mountpoints created using the nullfs(5) file system layer of FreeBSD.

Trying out Kleene's nullfs mounts¶

Before looking at how we can use nullfs mounts for developing our application, let's run a quick experiment to get a practical understanding of how they work.

Open a terminal and and go to the app directory of the getting started repository.
Run the following command to start sh in an fresh container with a nullfs mount.

$ klee run -it --mount /path/to/getting-started:/mnt FreeBSD-13.2-RELEASE /bin/sh

The --mount option tells Kleene to create a nullfs mount, where /path/to/getting-started is the app-repos on the host, and /mnt is where that directory should be mounted inside the container.

After running the command, Klee starts an interactive sh session in the root directory of the container's filesystem. Now, list the contents of /mnt within the container:

# ls /mnt
ls /mnt
.dockerignore           LICENSE                 docs
.git                    README.md               mkdocs.yml
.github                 app                     requirements.txt
.gitignore              build.sh
Dockerfile              docker-compose.yml

This is the directory that you mounted when starting the container. Listing the contents of this directory displays the same files as in the getting-started directory on our laptop.

Create a new file named myfile.txt.

# touch /mnt/myfile.txt
# ls /mnt
.dockerignore           LICENSE                 docs
.git                    README.md               mkdocs.yml
.github                 app                     myfile.txt
.gitignore              build.sh                requirements.txt
Dockerfile              docker-compose.yml

Now if you open this directory on the host, you'll see the myfile.txt file has been created in the directory.
From the host, delete the myfile.txt file and look into the container again. The file has disappeared.
Type exit in the container-console to exit the container and close the session.

This demonstrated how files are shared between the host and the container, and how changes are immediately reflected on both sides. Now let's see how we can use nullfs mounts during application development.

Run your app in a development container¶

The following steps describe how to run a development container that does the following:

Nullfs-mount our source code stored on the host in /home/jane/getting-started/app, into the container.
Install all dependencies
Start nodemon to watch for filesystem changes

So, let's do it!

Make sure to delete any webapp containers previously created.
Make a Dockerfile for a new image that does not contain the application source code. In this example, the easy way is to build on the existing image where node and yarn are already installed. Ideally we would split up the first image in two, such that we had a 'base image' containing the necessary software packages and another image for setting up our application.

Save the following content in Dockerfile.dev

FROM webapp:latest
RUN rm -rf /app
# Listens on port 3000
CMD cd /app && yarn install && yarn run dev

in same directory as the other Dockerfile. The CMD instruction starts a Bourne shell (sh) and runs yarn install to install dependency packages and then running yarn run dev to start the development server. If we look in the package.json, we'll see that the dev script starts nodemon.

Build the new image in a similar way as the previous image:

$ klee build -t webapp-dev -f Dockerfile.dev .

We explicitly tell Kleene which Dockerfile should be used for the build with -f Dockerfile.dev, thus avoiding the default Dockerfile we created previously. The above command should be executed in the getting-started/app directory.

Run the following command from the getting-started/app directory.

$ klee run -n testnet --mount /home/jane/getting-started/app:/app webapp-dev

The -d flag is omitted so the container output will be printed to the terminal.
The -n testnet connects the container to our testing network.
--mount /home/jane/getting-started/app:/app - nullfs mount our application source code from the host into the /app directory in the container.
webapp-dev - the image to use. This is our newly built image from above.

You should see output similar to this:

<initial output here>
$ nodemon src/index.js
2.0.20
to restart at any time, enter `rs`
watching path(s): *.*
watching extensions: js,mjs,json
starting `node src/index.js`
Using sqlite database at /etc/todos/todo.db
Listening on port 3000

Now you can hit Ctrl+C to return to the terminal prompt. Don't worry, your container is stilling running. Use klee lsc to be sure.

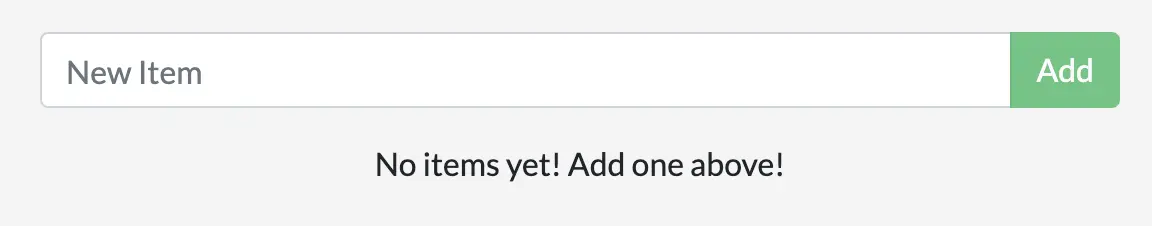

Now, make a change to the app. In the src/static/js/app.js file, on line 109, change the "Add Item" button to simply say "Add":

- {submitting ? 'Adding...' : 'Add Item'}
+ {submitting ? 'Adding...' : 'Add'}

Save the file.

Refresh the page in your web browser, and you should see the change reflected almost immediately. It might take a few seconds for the Node server to restart. If you get an error, try refreshing after a few seconds.

Using nullfs mounts is useful for local development setups. The advantage is that the development machine doesn't need to have all of the build tools and environments installed. With a single klee run command, dependencies and tools are ready to go.

Next steps¶

In order to prepare for production, you need to migrate your database from working in SQLite to something that can scale a little better. For simplicity, you'll keep with a relational database and switch your application to use MariaDB. But, how should you run MariaDB? How do you allow the containers to talk to each other? You'll learn about that next!
